Designed for Raspberry Pi Compute Module 4
Waveshare CM4-IO-BASE-A (Lite Ver.) inside, fast and easy to build a mini-computer
make it easy to build your own Raspberry Pi CM4 mini PC
CM4 Base Board | Interface count and specifications | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PoE | Gigabit ETH | 40PIN GPIO | PCIe | USB① | DSI | HDMI | CSI | RTC | Fan Header | Power Input | Features | |
NANO A | √ | 2.0×1 | ×1 | 5V | CM4 sized | |||||||
NANO B | ×1 | √ | 2.0×1 | ×1 | ×1 | ×1 | 5V | CM4 sized | ||||
NANO C | √ | 2.0×1 | ×1 | ×1 | ×1 | 5V | Onboard Camera | |||||
Duino | M.2 M | 2.0×1 | ×1 | ×1 | 5V | Arduino compatible | ||||||
mini Base A | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | 5V | 5V | mini size | ||
mini Base B | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5V | 5V | mini size | |
mini Base C | ×1 | √ | M.2 M | 2.0×2 | ×1 | ×2 | √ | 5V | 5V | Dedicated 40PIN LCD Connector | ||
Touch screen | ×1 | M.2 M | 2.0×4 | ×1 | ×1 | 5V | IPS screen | |||||
Mini Dual Gigabit | ×2 | √ | 2.0×1 | 5V SH1.0 | 5V | dual ETH | ||||||
Binocular camera | ×1 | √ | M.2 M | 2.0×4 | ×2 | 5V | dual 8MP cameras | |||||
4CH RS485 | ×1 | 2.0×2 | ×1 | ×2 | ×1 | 5V | 7-36V | dual ETH | ||||
WIFI6 DUAL ETH | ×1 | √ | M.2 E | 2.0×3 | ×1 | ×2 | ×2 | ×1 | 5/12V | 7-36V | WIFI6 dual ETH | |
Dual Gigabit ETH | ×2 | √ | 3.0×3 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | |||
IoT Dual Gigabit ETH | ×2 | √ | 3.0×2 | ×1 | ×2 | ×2 | √ | 5/12V | 5V | 5G/4G support | ||
IoT Base | √ | ×1 | Gen2×1 | 2.0×2 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | 5G/4G supportRS232RS485ADC | |
PoE Base (B) | √ | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 5V | RS232RS485 |
PoE UPS Base | √ | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | UPS |
PoE Base | √ | ×1 | √ | 3.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | ||
Raspberry Pi official | ② | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 12V | 12V | |
Wireless base | ×1 | M.2 B / Mini-PCIe | 2.0×3 | ×1 | ×1 | √ | 5/12V | 5V or 7-36V | 5G/4G support RS485 CAN rail-mount | |||
5″ touch screen | ② | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | √ | 5/12V | 5V | ||
7″ all-in-one | ×1 | M.2 M | 2.0×4 | used | ×1 | used | √ | 5/12V used | 7-36V | touch screen camera speaker | ||
Note | ① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). |

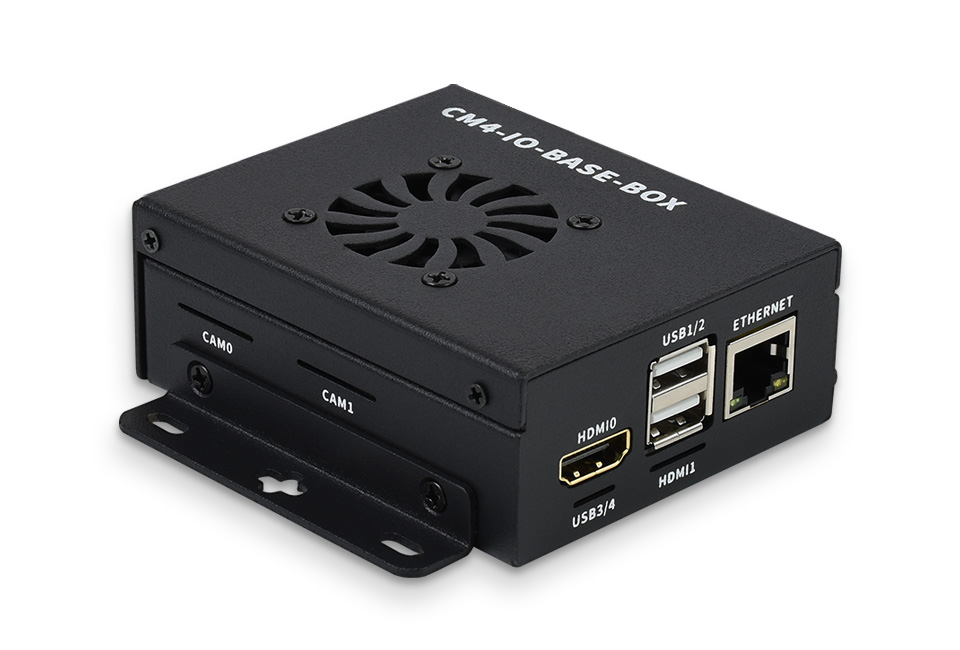

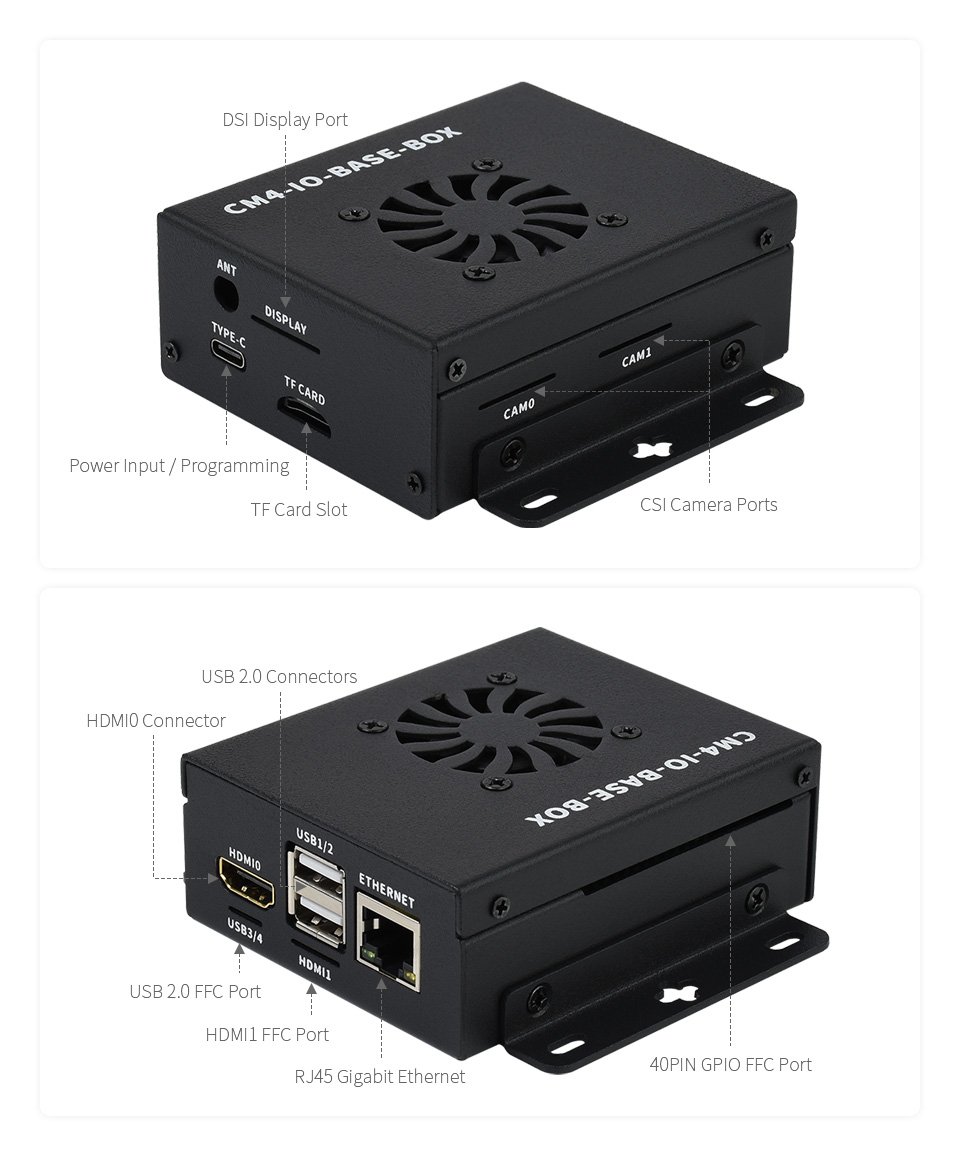

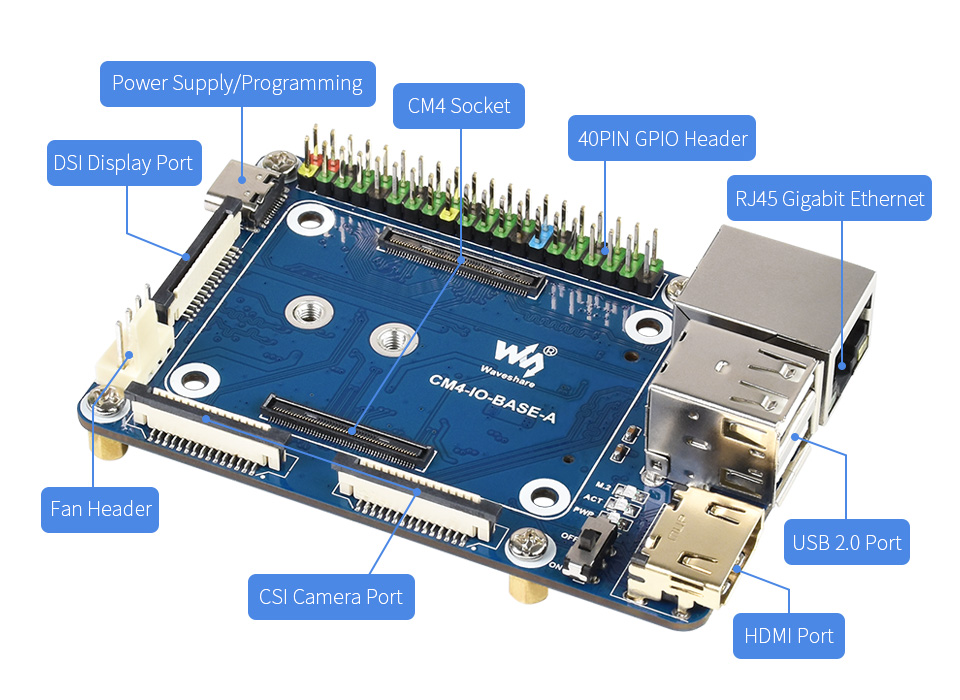

onboard connectors including CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot
each cut-out is completely aligned with the connector

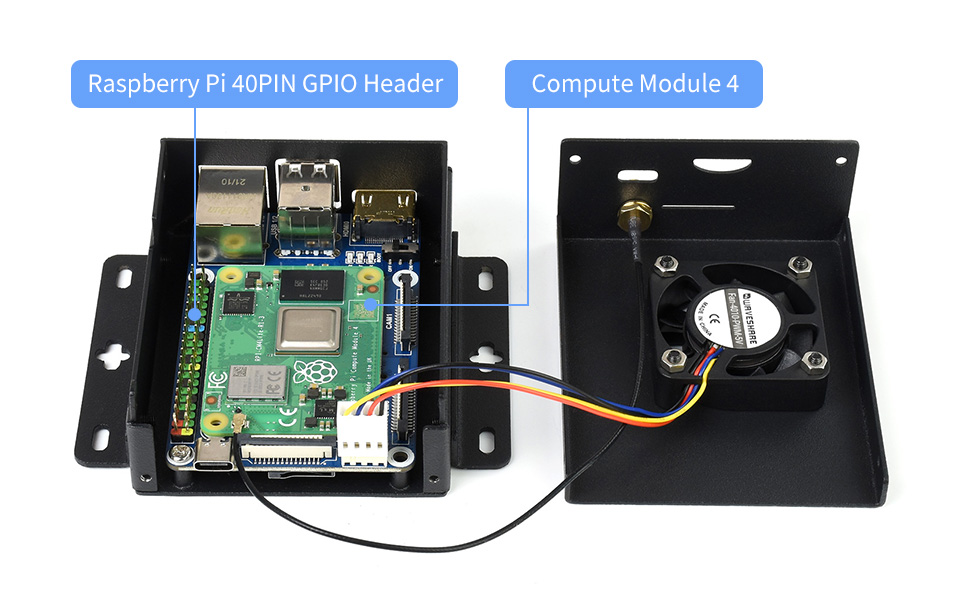

comes with cooling fan, combined with the airflow vent, better heat dissipation

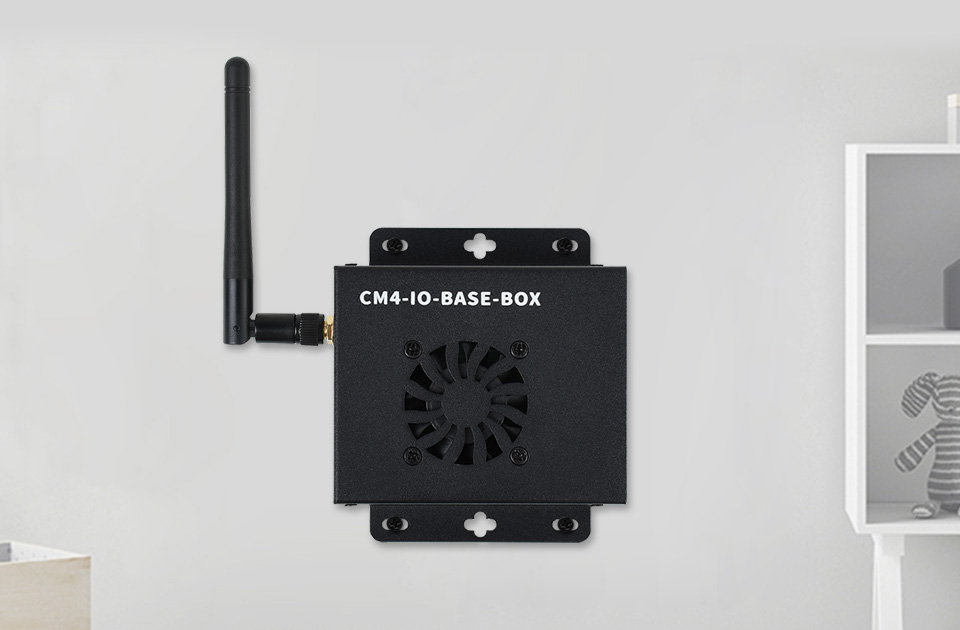

wall mount holes on two sides, handy for mounting
Binocular Vision Raspberry Pi Projects, Or Other Industrial Context
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
